Description

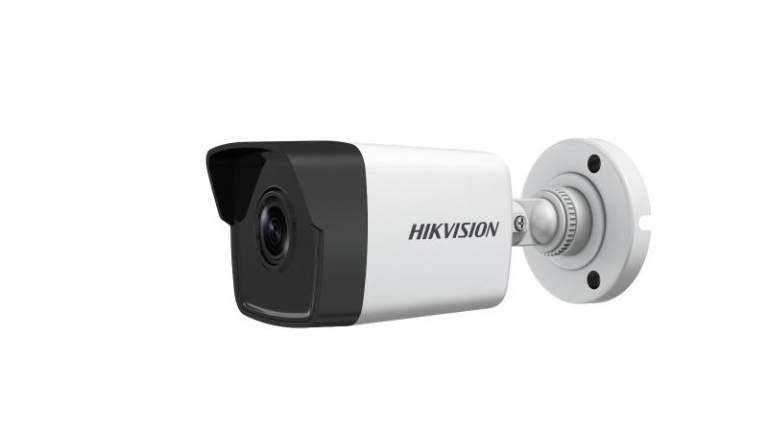

Hikvision 2 MP Fixed Bullet Network Camera (DS-2CD1023G0-I)

Camera

• Image Sensor2.54cm progressive scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Auto-IrisNo
• Day &NightIR cut filter
• Digital Noise Reduction3D DNR
• WDRDigital WDR
• Angle Adjustment (Bracket)Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°

Lens

• Focal length2.8 mm, 4 mm,6 mm
• ApertureF2.0
• FocusNo
• FOV2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°,6 mm, horizontal FOV 54°, vertical FOV 30° , diagonal FOV 62
• Lens MountM12

IR

• IR RangeUp to 30 m
• Wavelength850 nm

Compression Standard

• Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
• H.264 TypeMain Profile/High Profile/Baseline Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps

Smart Feature set

• Region of Interest1 fixed region for main stream


• Max. Resolution1920 × 1080
• Main Stream Max. Frame Rate50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)
• Sub stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image EnhancementBLC, 3D DNR
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, scheduled, day, night

Network

• Alarm TriggerMotion detection, video tampering alarm, illegal login
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• General FunctionAnti flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware Version5.5.2
• APIONVIF (PROFILE S), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users 3 levels: Administrator, Operator, and User
• ClientiVMS 4200, Hik Connect, iVMS 5200, iVMS 4500
• Web BrowserIE8+, Chrome 31.0 44, Firefox 30.0 51, Safari 8.0+

Interface

• Communication Interface1 RJ45 10M/100M self adaptive Ethernet port

General

• Operating Conditions– 30 °C to 60 °C 22 °F to 140 °F), humidity: 95% or less (non condensing)
• Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
• Power Consumption and Current12 V DC , 0.4 A, Max: 5 W PoE: (802.3af, 3 6 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
• Protection LevelIP67 TVS 2000V lightning protection, surge protection and voltage transient protection
• MaterialMetal & Plastic
• DimensionsCamera: Ø 70 mm × 172.7mm ( 2.7 2.7inch × 6.8 With package: 216 mm × 121 mm × 118 mm (8.5 8.5inch × 4.8 4.8inch × 4.6
• WeightCamera: Approx. 280 g ( 0.62 lb.) With package: Approx. 530 g ( 1.17 lb.)
