Description

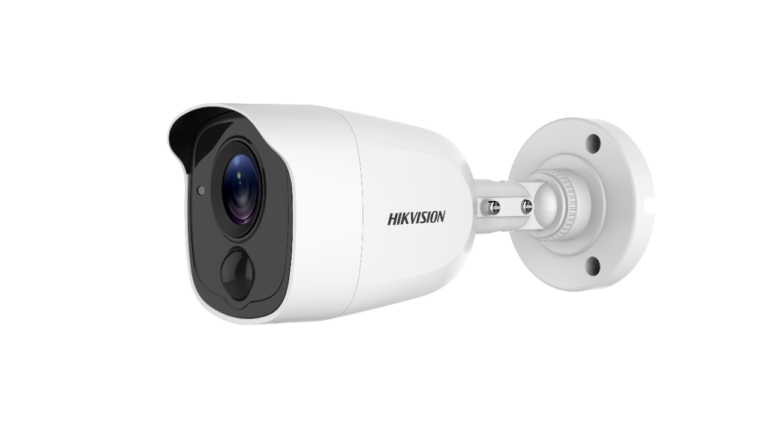

Hikvision 2 MP Ultra Low Light PIR Fixed Mini Bullet Camera DS-2CE11D8T-PIRL

• Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times
• Light AlarmYes

• Lens

• Lens Type2.8 mm, 3.6 mm fixed lens
• Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm)
• Lens MountM12

• Image

• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementWDR/BLC/HLC/Global
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR
• White BalanceAuto/Manual
• White LightAuto/Off
• AGCYes

• Supplement Detection(PIR)
• PIR RangeAngle: 110°

• Interface
• Video OutputTVI only

• Event
• Motion Detection4 programmable motion areas

• General

• MaterialMetal
• Dimension68 mm × 70 mm × 179.8 mm (2.68″ × 2.76″ × 7.08″)
• WeightApprox. 345 g (0.76 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25%,*You are recommended to use one power adapter to supply the power for one camera.
• ConsumptionMax. 4.5 W
• IR RangeUp to 30 m
• White Light RangeUp to 20 m

• Approval
• ProtectionIP67
