Description

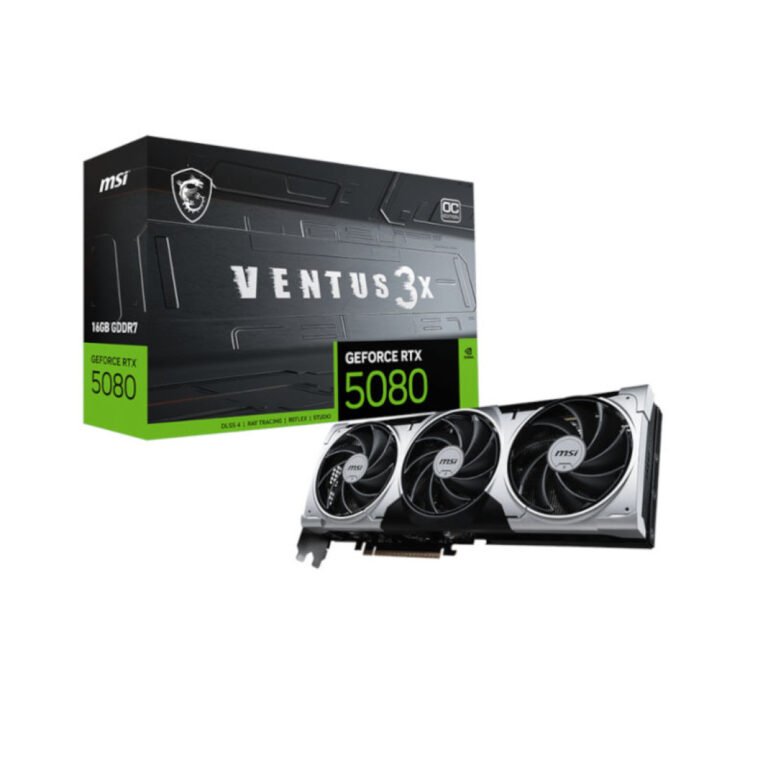

MSI GeForce RTX 5080 Ventus 3X OC Plus 16GB GDDR7

Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification
MARKETING NAME	GeForce RTX 5080 16G VENTUS 3X OC PLUS
MODEL NAME	G5080-16V3CP
GRAPHICS PROCESSING UNIT	NVIDIA® GeForce RTX™ 5080
INTERFACE	PCI Express® Gen 5
CORE CLOCKS	Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz
CUDA® CORES	10752 Units
MEMORY SPEED	30 Gbps
MEMORY	16GB GDDR7
MEMORY BUS	256-bit
OUTPUT	DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP SUPPORT	Y
POWER CONSUMPTION	360 W
POWER CONNECTORS	16-pin x 1
RECOMMENDED PSU	850 W
CARD DIMENSION (MM)	303 x 121 x 49 mm
WEIGHT (CARD / PACKAGE)	1105 g / 1618 g
DIRECTX VERSION SUPPORT	12 Ultimate
OPENGL VERSION SUPPORT	4.6
MAXIMUM DISPLAYS	4
G-SYNC® TECHNOLOGY	Y
DIGITAL MAXIMUM RESOLUTION	7680×4320
WARRANTY	3 Years
Note*	Price, Feature and Specifications Are Subject to Change Without Notice.
