Description

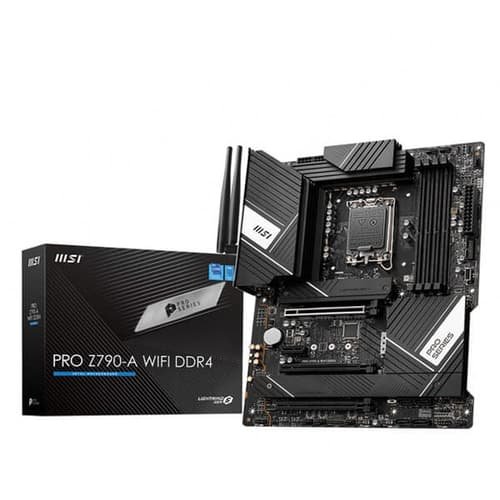

MSI PRO Z790-A WiFi DDR4 Motherboard, ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700-80A SPS VRM, DDR4 Memory Boost 5333+MHz/OC, PCIe 5.0 & 4.0 x16, 4 x M.2 Gen4, 2.5G LAN

12TH & 13TH GEN CORE, HIGH PERFORMANCE – The PRO Z790-A WIFI DDR4 employs a 16 Duet Rail Power System (80A, SPS) VRM for the Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost architecture for high CPU core count power demands
DDR4 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR4 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5333+ MHz); A PCIe 5.0 x16 Steel Armor slot supports the primary graphics card (secondary PCIe 4.0 x16 slot)
QUADRUPLE M.2 CONNECTORS – Storage options include 4 x M.2 Gen4 x4 64Gb/s slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access; Features a tool-free installation system with EZ M.2 Clips
WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

Brand	‎MSI
Manufacturer	‎MSI, Micro-Star INT’L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan
Series	‎PRO Z790-A WIFI DDR4
Form Factor	‎atx
Item Height	‎7 Centimeters
Item Width	‎26.8 Centimeters
Product Dimensions	‎34.2 x 26.8 x 7 cm; 439.5 g
Item model number	‎7E07-001R
Processor Socket	‎LGA 1700
Memory Technology	‎DDR4
Memory Clock Speed	‎5600 MHz
Graphics Card Interface	‎PCI-Express x16
Wireless Type	‎Bluetooth, 802.11ax
Number of HDMI Ports	‎2
Number of Ethernet Ports	‎1
Voltage	‎1 Volts
Are Batteries Included	‎No
Lithium Battery Energy Content	‎225 Milliampere Hour (mAh)
Lithium Battery Weight	‎2.9 g
Number of Lithium Ion Cells	‎1
Manufacturer	‎MSI
Item Weight	‎440 g
