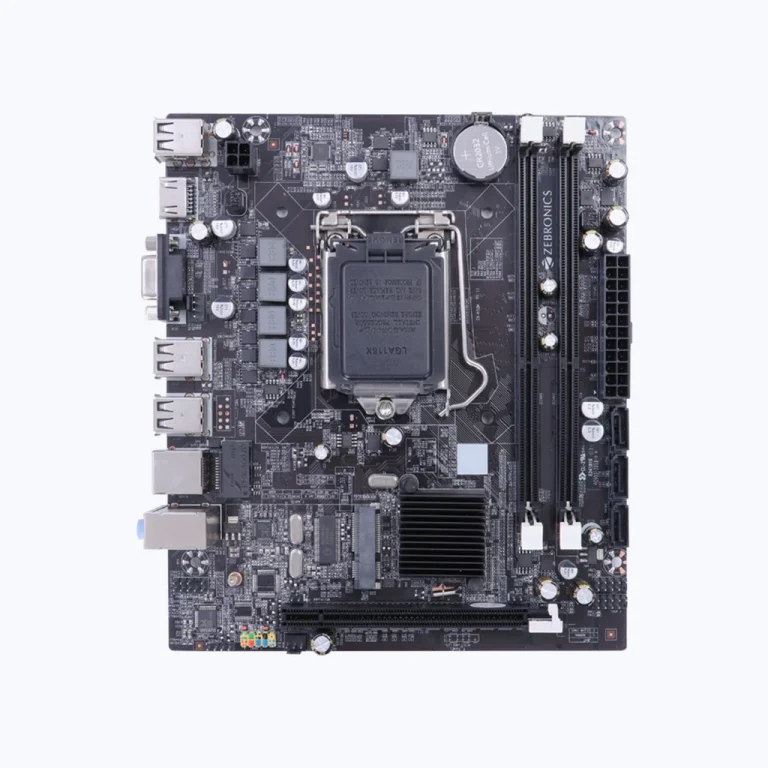

Zebronics Intel H55 Chipset Motherboard Socket 1156 Zeb55

Zebronics Intel H55 Chipset Motherboard Socket 1156 Zeb55

157 Views

2,700.00

Availability: Out of stock

SKU: ZEBH55 Categories: Tag:
Description

Product Description

Specifications
In The Box
Sales Package
  • Motherboard – 1no, SATA cables, Driver disc, User manual
General
Brand
  • ZEBRONICS
Model ID
  • ZEB-H55
Essentials
Form Factor
  • Micro-ATX
Socket Type
  • LGA 1156
Compatible Processors
  • Intel Core i7-800/i5-700/i5-600/i3-500 series processors in LGA 1156
Chipset
  • Intel H55, Intel 55 Chipset
Chipset Manufacturer
  • Intel
Memory
Number of Memory Slots
  • 2 Slots
Memory Configuration
  • 8 GB DDR3 2×240-pin DDR3 SDRAM slots memory up to 8GB each slot (total 16GB), supports dual- channel DDR3 1066/1333/ 1600MHz memory SD RAM
Memory Frequency
  • 1066/1333/ 1600 MHz
Buffered Memory
  • No
Graphics
Integrated Graphics card
  • INTEL HD
External Graphics Card Support
  • Yes
Audio
Audio Channels
  • 1
Connectivity
Ethernet Controller
  • Integrated LAN with 10/100Mbps LAN
Ethernet Card
  • Integrated LAN with 10/100Mbps LAN
Ethernet Features
  • Integrated LAN with 10/100Mbps LAN
Wireless and Bluetooth
  • Optional and Optional
Expansion Slots
PCI Slots
  • 1
PCIe x1 Slots, Generation
  • 1
PCIe x16 Slots, Generation
  • 1
Internal I/o Headers
USB 2.0 Headers
  • 4
ATX Power Connectors
  • 1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers
  • 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers
  • 2
Other Connectors
  • 1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, Compatible with USB 1.1, 1 x Rj45 Port, 1 x 3-in-1 Audio (Line In/Line Out/Mic In), 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB Connectors, Supports 4 x USB 2.0, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors 3 x Serial ATA Connections Ports
VGA/Dsub Connectors
  • 1
Back Panel Ports
USB 2.0 Ports, Controller
  • 6
HDMI Ports
  • 1
VGA/D Sub Ports
  • 1
Audio I/O Channels
  • 2
RJ-45 Ethernet Jacks
  • 1
General Features
Support CDs
  • Drivers CDs
OS Support
  • Windows 7, Windows 8, Windows 10
BIOS
  • EFII BIOS
Advanced Technologies
  • Intel Core i7-800/i5-700/i5-600/i3-500 series processors in LGA 1156
Advanced Features
  • Intel Core i7-800/i5-700/i5-600/i3-500 series processors in LGA 1156
Warranty
Warranty Summary
  • 2 Year Manufacturing Warranty
Covered in Warranty
  • Manufacturing Defect
Not Covered in Warranty
  • Damage
Warranty Service Type
  • Service Center
Brand

Brand

Zebronics
